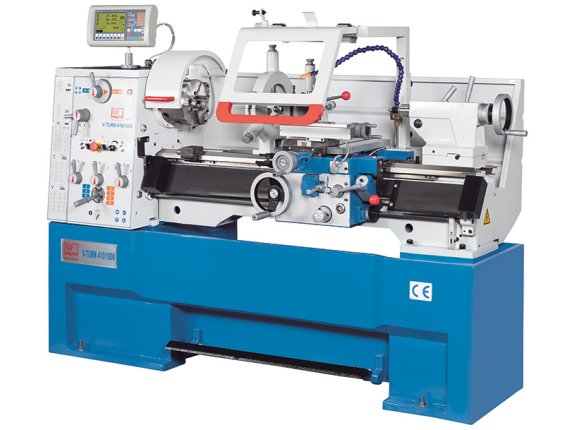

V-Turn 410/1500 - Konstant skjærehastighet!

Spesifikasjoner

• Working areaCenter width1500 mmCenter height205 mmTurning diameter over bed380 mmTurning diameter over gap bridge580 mmTurning-Ø over support255 mmGap bridge length250 mmBed width250 mm

  TravelsTravel X-axis210 mmTravel Z1-axis140 mmSwing range of top slide± 45°

  HeadstockSpeed range, high550 1/min - 3000 1/minSpeed range, low30 1/min - 550 1/minSpindle bore52 mmSpindle mountCamlock D1-6Spindle taper6 MT

  FeedFeed X-axis0,025 mm/R - 0,85 mm/RFeed Z-axis0,05 mm/R - 1,7 mm/R

  ThreadingThreading, metric(39) 0,2-14 mmThreading, diametric(21) 8-44 DPThreading, module0,3 mm - 3,5 mmThreading, whitworth(45) 2-72 TPI

  TailstockTailstock quill diameter50 mmTailstock taper4 MTTailstock quill stroke120 mmTailstock traverse adjustment± 13 mm

  Drive capacityMotor rating main drive5,5 kW

  Measures and weightsOverall dimensions (length x width x height)2,44 m x 1 m x 1,32 mWeight1800 kg

  ‍

• • Constant cutting speed: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
  • A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
  • Wide, hardened and ground guideways ensure superior turning results and long life
  • Large spindle bearings and high-precision headstock ensure excellent concentricity
  • Headstock gears and shafts are hardened and ground for quiet operation und constant speed
  • 5.5 kW headstock motor ensures powerful machining
  • Spindle speeds are infinitely variable from 30 to 550 and 550 to 3000 rpm
  • Micrometer and turret stop are included
  • Integrated central lubrication at the support for low maintenance
  • The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
  • Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
  • The electromagnetic brake on the main spindle is maintenance-free and slows the machine safely and reliably

  ‍

• 3-axis position indicator, X.pos 3.2 VC

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

  Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

  Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

  Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter

  ‍
