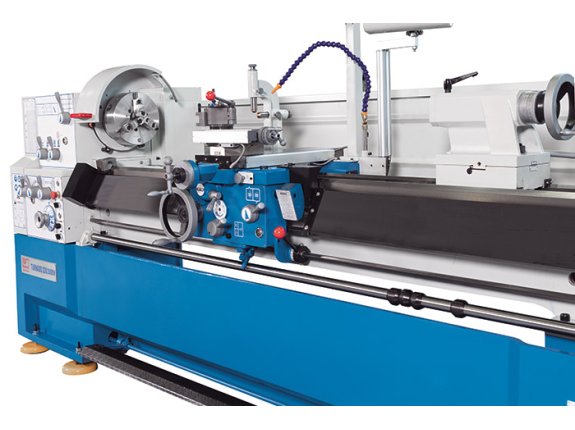

Turnado 230/1500V TILBUD!!!! Arbeidshest !!

Spesifikasjoner

• Working area

  ‍Center height230 mm Workpiece length (max.)1500 mm Turning-Ø over bed460 mm turning-Ø over support224 mm Turning diameter over gap bridge690 mm Gap bridge length155 mm Bed width300 mm

  Details Equipmentwith position indicator and infinitely variable speed adjustment

  TravelsTravel X-axis285 mmTravel Z1-axis128 mmSwing range of top slide± 52°

  HeadstockSpindle speedsL 30-600 / H 600-3000 1/minSpindle bore58 mmSpindle mountCamlock D1-6Spindle taper6 MT

  FeedFeed X-axis0,014 mm/R - 0,784 mm/RFeed Z-axis0,031 mm/R - 1,7 mm/R

  ThreadingThreading, metric0,1 mm - 14 mmThreading, diametric(50) 4-112 DPThreading, module0,1 mm - 7 mmThreading, whitworth(60) 2-112 TPI

  TailstockTailstock quill diameter60 mmTailstock taper4 MTTailstock quill stroke120 mmTailstock traverse adjustment± 13 mm

  Drive capacityMotor rating main drive7,5 kW

  Measures and weightsOverall dimensions (length x width x height)2,75 m x 1,08 m x 1,34 mWeight1970 kg

  ‍

• • The Turnado V Series Universal Lathes are widely tested and proven and our definite bestsellers with a low price and lasting high value

  Machine bed

  • A heavily ribbed machine bed, rigid headstock and a massive one-piece thick-walled cast-iron stand form a solid machine base for efficient and precisely machining
  • A removable bridge allows machining of short workpieces with very large diameters
  • The wide v-block guideways are hardened and ground for lasting precision

  Headstock/ feed gear

  • The powerful motor features a modern variable frequency drive, and the two-step main spindle gear ensures high torque across the entire infinitely variable speed range
  • The Turnado 230 V series features an extended maximum speed range and a wider application spectrum
  • All gears and shafts are hardened and ground and run in an enclosed oil bath
  • The large spindle capacity allows clamping of shafts and tubes with large diameters
  • The high quality spindle support features optimum rigidity and preloading for high precision even under high radial and axial loads as well as long lasting performance
  • A 3-jaw lathe chuck with hard reversible jaws, a 4-jaw independent chuck, and a face plate with large diameter are included in the machine’s standard equipment
  • The user-friendly control panel facilitates rapid user familiarization and intuitive operation
  • The feed gear offers a large number of thread leads for metric and Withworth tapping

  Support

  • The support is designed extra-wide and can easily handle high machining forces
  • The control lever for the feed switch and apron nut provide automatic safety interlocking and reliably prevent operational errors
  • The stop spindle features four adjustable cams to provide automatic linear feed shut-off
  • This way, repetitive machining processes with different Z axis positions can be simplified by presetting the desired positions in the necessary sequence
  • The micrometer bed stop can be used to set precise travel distance limits
  • The slip coupling for the automatic feed is positioned centrally on the apron for easy adjustments
  • The thread gauge and support allow reliable determination of the pitch after an interrupted tapping process, and also simplifies machining of multi-lead threads
  • The top slide swivels and has large, easy to read scaling
  • The large, swiveling safety cover at the support protects the user and keeps the work space clean
  • A central lubrication system at the support supplies all guideways with lubrication and simplifies maintenance

  Tailstock

  • The tailstock quill is equipped with a robust and easy to read scale
  • The long quill stroke allows for complex drilling and centering jobs
  • The tailstock can be adjusted laterally for machining of conical shafts

  Accessories

  • The standard brake pedal is not only practical, but also a safety feature
  • A large and sturdy splash guard an the rear of the machine ensures a clean machine environment
  • A bright LED light is integrated in the support cover for optimum lighting throughout the work space
  • The multi-functional quick-action tool changer system with tool changer cartridge is included in the standard equipment of this series
  • A steady and a live rest are a must for long workpieces and also included in the standard package
  • The Turnado Lathe is equipped with the latest generation of our position indicators. Ensures high work precision, lower error rate, and increased operator safety
  • Extended X.Pos Position Indicator functionality with the addition of the “V-constant” function
  • During facing, the spindle speed is automatically adapted to the changing workpiece diameters, resulting in a surface quality that is comparable to the surface grade achieved with CNC lathes
  • A coolant system and extensive operating tools complete the equipment package

  ‍

• 3-axis position indicator, X.pos 3.2 VC

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

  Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

  Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

  Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter

  ‍

• 3-axis position indicator, X.pos 3.2 VC

  3-jaw chuck Ø 250 mm

  4-jaw face plate chuck Ø 300 mm

  Face plate Ø 350 mm

  Quick change tool holder head WB

  Quick change tool holder WBD 25120

  Coolant system

  Follow and steady rests

  Adjustable feed stops

  Fixed splash guard (wall)

  Chuck guard

  ‍
